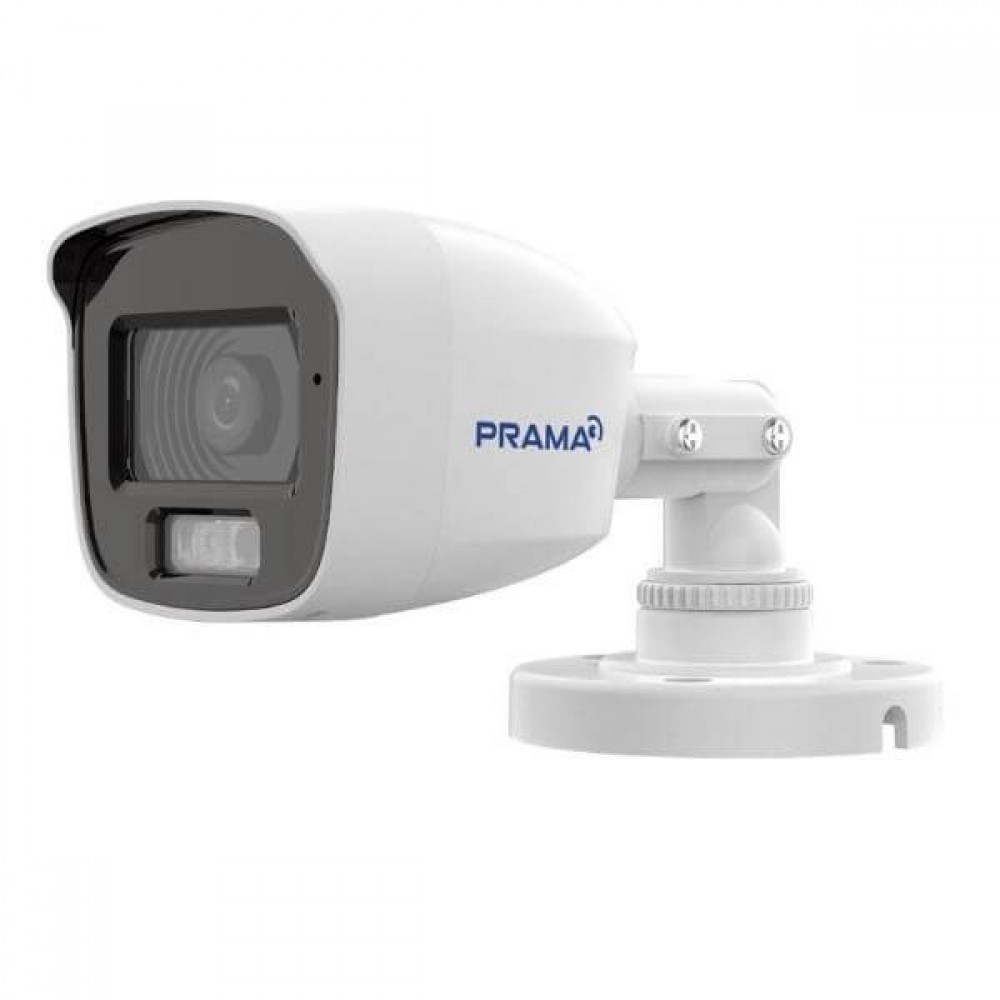

PRAMA 2MP COLOR BULLET CAMERA PT-HTD11F0E-WPF(M)

PRAMA 2MP COLOR BULLET CAMERA PT-HTD11F0E-WPF(M)

Camera

Image Sensor2 MP CMOS

Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Angle AdjustmentPan: 0 to 360°, tilt: 0 to 180°, rotate: 0 to 360°

Signal SystemPAL/NTSC

Max. Resolution (H x V)1920 × 1080

Day ＆ NightICR

Lens

Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional

Focal Length & FOV2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 116° 3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

Lens MountM12

Illuminator

Supplement Light TypeWhite Light, IR

Supplement Light RangeUp to 20 m


Image SettingsBrightness, Sharpness, Smart IR

Frame RateTVI: 1080P @30 fps, 1080P @25 fps AHD: 1080P @30 fps, 1080P@25 fps CVI: 1080P @30 fps, 1080P @25 fps CVBS: PAL/NTSC

Day/Night ModeAuto/Colour/BW (Black and White)

Wide Dynamic Range (WDR)Digital WDR

Image EnhancementDWDR/BLC/HLC/Global

White BalanceAuto/Manual

AGCYes

Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS

Built-in MicrophoneYes

General

Power Supply12 VDC ± 25% * It is recommended to use one power adapter to supply power for one camera.

MaterialPlastic

Dimension161.22 × 57.97 × 61.96 mm (6.35 × 2.28 × 2.44 inch)

WeightApprox. 164 g

Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)

ProtectionIP66
